AT-Knee

Target Users (Target Impact Group)

Distributors / Implementing Organizations

Expected to be distributed by distributors, NGOs, prosthetic clinics and government rehab facilities, in both high-income countries and the developing world.

Manufacturing/Building Method

LegWorks mass produces the AT-Knee in Germany.^(Interview with representative)

Intellectural Property Type

Patent Protected

User Provision Model

The AT Knee is currently available for purchase by prosthetists and NGOs directly from LegWorks. The AT-Knee can be purchased through distributors in some markets.^{Interview with representative} For Sales inquiries, email sales@legworks.org. Legworks sells the AT-Knee at competitive prices in developed countries and decreased prices for reputable intermediaries distributing in developing countries.

Distributions to Date Status

Over 1,000 units will be distributed by the end of 2016.^(Interview with representative)

Design Specifications

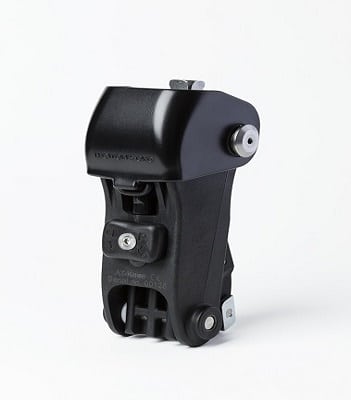

T The AT-Knee uses a mechanical stance-­phase lock called the Automatic Stance-­Phase Lock (ASPL). This means that the knee automatically locks when fully extended. The knee is designed to be used in harsh environments including water and dirty conditions. However, after being subjected to these environments, the knee should be cleaned to prevent premature wear and tear. AT Knee specifications: - - Weight of knee: 015g - - Weight Rating: 125kg (275 lbs.) - - Height of knee: 170mm (6.7 inches) - - Proximal portion length (knee axis to top): < 2cm - - Proximal Connection: Standard 10mm bolt and/or pyramid adaptor - - Distal Connection: 30mm Ø tube clamp - - Maximum knee flexion: 150 degrees - - Construction: High-­strength, impact resistant fiber-­reinforced Nylon 6-­6 body

Technical Support

The AT Knee instructions for use indicate that maintenance must be carried out by competent personnel. Visual inspection annually is recommended. LegWorks does not recommend or indicate specific institutions associated with support.

Replacement Components

Unknown

Lifecycle

The AT-Knee is covered by a 2 year warranty, no changes or modifications are allowed.

Manufacturer Specified Performance Parameters

Waterproof and easy to clean. Highly durable, easily maintained and repaired. Quick and simple setup, alignment and use. Stable.

Vetted Performance Status

In trials, early users in 10 countries reported a 95% preference for the relatively low-cost AT-Knee to more expensive existing technologies.

Safety

The AT-Knee should only be fit by a qualified professional

Complementary Technical Systems

Unknown.

Academic Research and References

Compliance with regulations

LegWorks has FDA Establishment Registration. The AT-Knee is CE Marked. The AT-Knee is ISO 10328 compliant.^(Interview with representative)

Other Information

Recipient of Grand Challenges Canada
