Azuri 50W, TV120 Solar Home System

Product Description

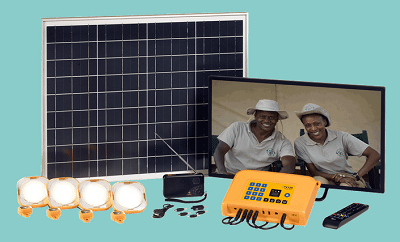

Azuri 50W, TV120 Solar Home System is a 50 W solar home system meant for rural off – grid homes. It has a 50W solar panel and a 6700mAh battery. The Azuri 50W, TV120 Solar Home System can power up to 4 LED lamps, a television set, a FM radio and can charge a mobile phone.

Target Users (Target Impact Group)

Distributors / Implementing Organizations

Azuri Technologies

Manufacturing/Building Method

Mass produced

Intellectural Property Type

Patent Protected

User Provision Model

Available from distributors.

Distributions to Date Status

Unknown

Design Specifications

Appliances: LED Lights, Television, Radio, Mobile Phone. Weight: 5.63 kg Lamp: LED CRI - 71, CCT - Cool (3000 - 5000 K) Light Output (lm): 150 Batteries: 12.8V, 6.7Ah Solar PV Modules: 51W

Technical Support

Available from service agents.

Replacement Components

Available from service agents.

Lifecycle

Battery - 5 years

Manufacturer Specified Performance Parameters

Unknown

Vetted Performance Status

Lighting Global has vetted the following performance parameters; 1. Truth in Advertising 2. Lumen Maintenance 3. AC-DC Charger Safety 4. Battery Composition, Battery Protection, Battery Durability. 5. Physical Ingress Protection 6. Water Ingress Protection 7. Drop Test 8. Soldering and Electronics Workmanship 9. Mechanical Durability 10. Minimum Warranty Terms 11. Performance Reporting

Safety

Follow proper electrical installation and control guidelines.

Complementary Technical Systems

None

Academic Research and References

Simon C and Anicet M (2016), Pay-as-you-go solar PV in Rwanda: evidence of benefits to users and issues of affordability, The Journal of Field Actions, Special Issue 15, p. 94-103.

Compliance with regulations

This product has complied with the Lighting Global Quality Standards, and has been tested according to the Quality Test Method stipulated in the IEC 62257 - 9 -5 Standard.

Other Information

None
