Bici Bomba Rosario de Agua

Target Countries

Guatemala, Mexico

Target SDGs

Market Suggested Retail Price

$277.00

Target Users (Target Impact Group)

Household, Community

Distributors / Implementing Organizations

Bici-Tec distributes the product directly and works with community leaders to distribute it. Interview with representative

Competitive Landscape

Direct competitors include BluePump, Vergnet-Hydro 60-2000 Pump, and iDE Rope Pump.

Manufacturing/Building Method

Make to order, the building methods are half artisanal and half industrialized.

Intellectural Property Type

Open source

User Provision Model

Direct from manufacturer, to place an order call Carlos Marroquin at +502 4080 1572 or reach out to the company through their Facebook page.

Distributions to Date Status

Over 500. Interview with representative

Design Specifications

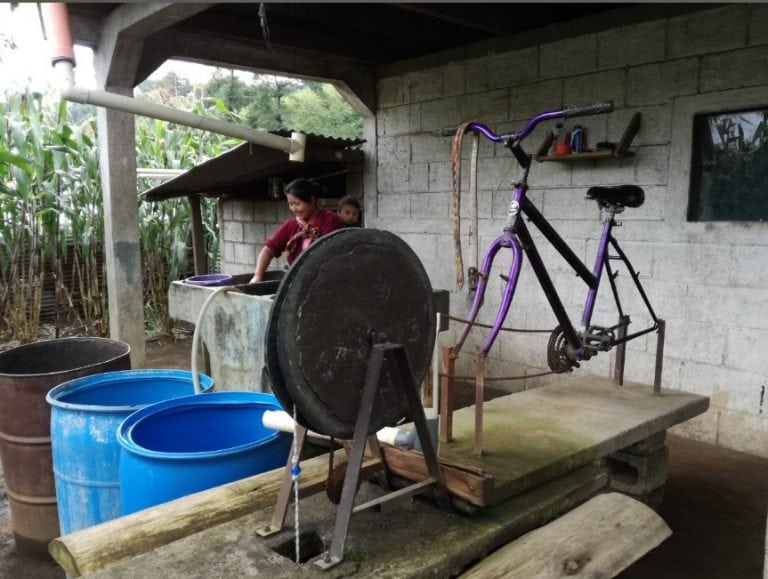

The product is stationary and pedal powered, it requires no electricity to be operated. It is made from used bicycle parts such as pedals, frame, chains, and handles. The pedaling system is connected to a cement flywheel to facilitate continuous pedaling and uses sprockets’ diameter relation to vary speed and torque. The system is connected to rope which is lowered down into a well and drawn up through a long pipe with the bottom immersed in water. The system also consists of round plastic balls whose diameter matches the diameter of the pipe and which function as a seal that helps pull the water to the surface.

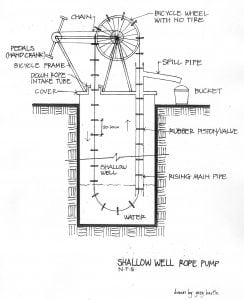

Product Schematics

Technical Support

Bici-Tec trains users at the moment of delivering the product on how to give preventive maintenance. If needed Bici-Tec can also do repairs or provide additional technical support. Interview with representative

Replacement Components

Available at Bici-Tec and locally available at bike shops. Interview with representative

Lifecycle

The product can be recycled afterwards, to make more bici maquinas or at a common recycling center since most of the structure is steel.

Manufacturer Specified Performance Parameters

This product pumps between 5 to 10 gallons of water per minute from a 30 m well.

Vetted Performance Status

This product pumps about 220 L in 15 minutes (~4 gallons per minute) from a 14 m well.

Safety

Risk of winding due to exposed rotating components and medium rotational speed.

Complementary Technical Systems

Bici-Tec teaches, empowers, and encourages people to use pedal powered machines (bici maquinas) through their school Escuela De Bici-Tecnología Apropriada.

Academic Research and References

Compliance with regulations

Unknown

Evaluation methods

Field tests Interview with representative)

Other Information

Video
