BioQube

Product Description

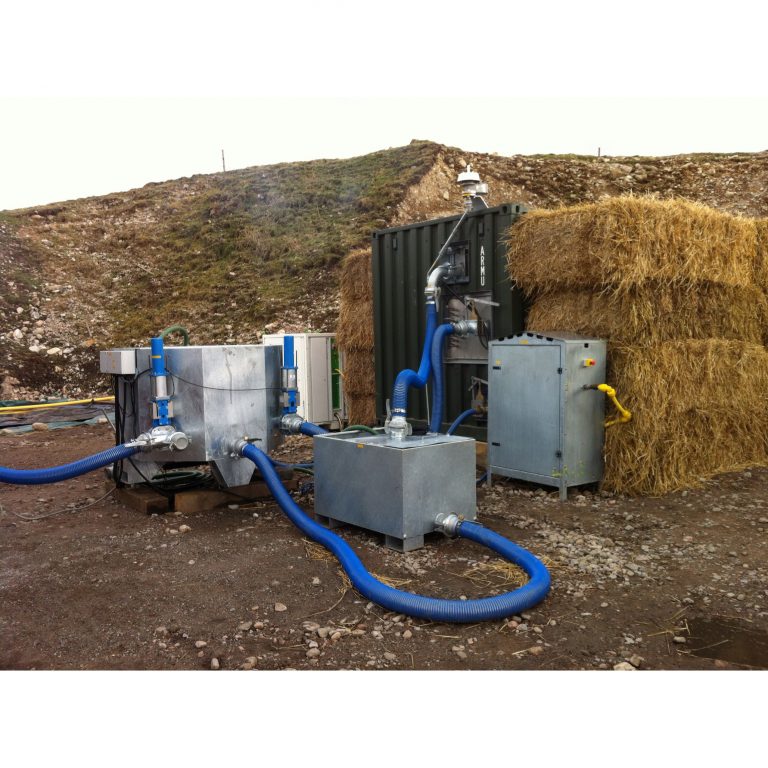

BioQUBEs are small scale anaerobic digesters (biogas digesters) providing a compact solution to process smaller volumes of feedstocks and wastes on site. The systems can be configured for each site to allow multiple digesters running from a single feed system along with biogas storage, energy generation and digestate pasteurization.

The system includes several components from flexible piping, large capacity reservoirs made from plastics to shipping containers. According to the manufacturer, each system comprises 20 or 40 foot shipping containers with different numbers of modules to make up the required unit processing size. Differing feedstocks have different biogas yielding values. For example, one ton of cow slurry yields 21 m³ of biogas compared to one ton of fatty food waste which yields 320 m³ of biogas.

Target Users (Target Impact Group)

Distributors / Implementing Organizations

QUBE Renewables Ltd

Manufacturing/Building Method

Intellectural Property Type

Trademarked

User Provision Model

This product is distributed by QUBE Renewables Ltd

Distributions to Date Status

Unknown

Design Specifications

Each system comprises 20 or 40 foot shipping containers with differing numbers of modules to make up the required unit processing size. Differing feedstocks have different biogas yielding values. For example, one ton of cow slurry yields 21 m³ of biogas compared to one ton of fatty food waste which yields 320 m³ of biogas.

Technical Support

Unknown

Replacement Components

Unknown

Lifecycle

Unknown

Manufacturer Specified Performance Parameters

The following matrix provided by the manufacturer at their website illustrate an example of the system's performance for transforming food waste into energy.
