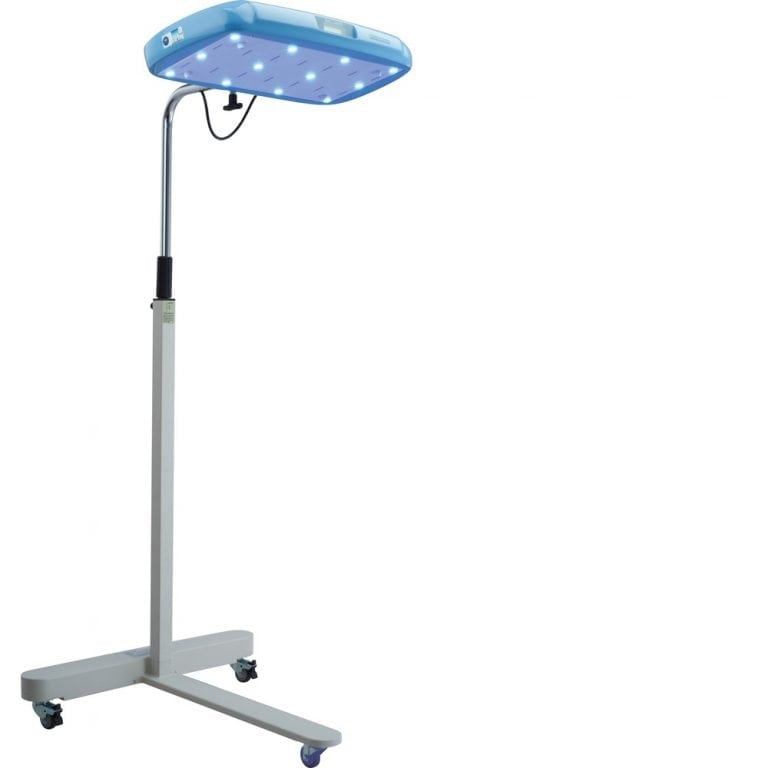

Brilliance Phototherapy Device

Product Description

Brilliance Phototherapy Device is a blue LED-based phototherapy device for treatment of neonatal jaundice.

Market Suggested Retail Price

$500.00

Target Users (Target Impact Group)

Distributors / Implementing Organizations

Phoenix Medical Systems Private Ltd in Chennai India manufactures, distributes, and sells Brilliance under a license from D-Rev

Manufacturing/Building Method

Manufactured in India

Intellectural Property Type

Patent Protected

User Provision Model

For sale globally through Phoenix Medical Systems. Users can submit an enquiry form or contact the manufacturer through the phone.

Distributions to Date Status

As of 2015, 1,204 units have been installed in 15 countries. ^{Interview with designer, May 2015} As of 2020, over 960,000 babies have been treated with Brilliance Phototherapy Device in 61 countries.

Design Specifications

* Overall Dimensions: 159.5 cm (height) x 71 cm (width) x 71 cm (depth) * Light Unit Dimensions: 57.5 cm (length) x 36 cm (width) x 6 cm (depth) * Total Unit Mass: 20 kg * Footprint of Stand: 71 cm (length) x 71 cm (width) x 13 cm (depth) * Height of Base <7.5 cm * Castors: 2 Lockable * Height Adjustment Range: 110 cm-160 cm (distance between bottom surface and ground) * Recommended treatment distance: 35 cm * Electrical supply: voltage 100-240 VAC ~; frequency 50/60 Hz * Max power consumption: 60 W More information can be found here.

Technical Support

Several hours of training are required for physicians, nurses, or midwives who will be responsible for placing infant under the device and overseeing their care.

Replacement Components

Brilliance LEDs last up to 120,000 hours and will not need to be replaced for the life of the device. Use of LEDs has minimized maintenance requirements as they require replacement every 10 years compared to other common phototherapy devices that use compact fluorescent light bulbs that require replacement every 3-5 months.

Lifecycle

Product has a lifetime of 10 years with proper care and maintenance (assuming 18 hrs usage per day). Warranty information available from Phoenix Medical Systems.

Manufacturer Specified Performance Parameters

Manufacturer specified performance targets include: able to operate in areas of unreliable power supply, low cost, easy to use, portable.

Vetted Performance Status

During tests at Stanford University School of Medicine, Brilliance outperformed state-of-the-art phototherapy devices (that often cost upwards of $3,000 USD). Brilliance was also found to meet American Academy of Pediatrics standards for effective jaundice treatment Brilliance received CE mark in October 2013, certifying that the product meets European Union standards for safety and quality.

Safety

Error in obtaining the proper distance between the patient and the phototherapy device can result in under or over dose to the patient. The device has a built-in over temperature cut off to maintain safe temperatures.

Complementary Technical Systems

Eye covers, Gonad covers, Bassinet

Academic Research and References

V. K. Cline et. al., Evaluation of an Affordable LED Phototherapy Device for Resource-Limited Settings, in 2011 Pediatric Academic Societies (PAS) and Asian Society for Pediatric Research (ASPR), 2011.

M. C. Juarez and A. L. Grossberg, “Phototherapy in the Pediatric Population,” Dermatologic Clinics, vol. 38, no. 1. W.B. Saunders, pp. 91–108, 01-Jan-2020, doi: 10.1016/j.det.2019.08.012.

R. Pugashetti and J. Koo, Phototherapy in Pediatric Patients: Choosing the Appropriate Treatment Option, YSDER, vol. 29, pp. 115–120, 2010, doi: 10.1016/j.sder.2010.03.006.

A. Paši? et al., Phototherapy in pediatric patients, Pediatr. Dermatol., vol. 20, no. 1, pp. 71–77, Jan. 2003, doi: 10.1046/j.1525-1470.2003.03016.x.

Compliance with regulations

IEC 60601, ISO 14971, ISO 15223-1, ISO 9001:2000, ISO 13485:2003

Other Information

Best in Show, Neocon 2014
