CycloClean

Target Countries

Japan

Target SDGs

Market Suggested Retail Price

$6,600.00

Target Users (Target Impact Group)

Household, Small and Medium-sized Enterprises

Distributors / Implementing Organizations

The product is distributed by the manufacturer, Nippon Basic Co. Ltd.

Manufacturing/Building Method

The product is manufactured in Bangladesh. However, it's two main components pumps and filters are imported from Japan.

Intellectural Property Type

Patent Protected

User Provision Model

Users can obtain the product by contacting the manufacturer directly.

Distributions to Date Status

As of November 2014, 200 units have been distributed.

Design Specifications

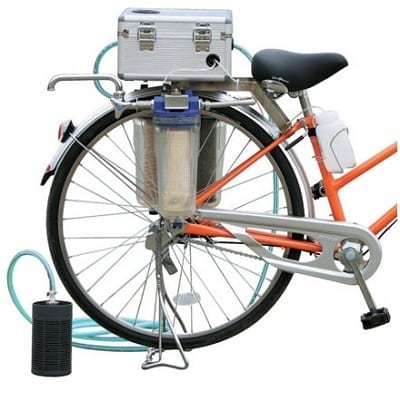

CycloClean bicycle is comprised of a bicycle that doubles as transportation and water purification. The purification system is made of four filters, a pre-filter and three filters to purify water for drinking - 1 microfiltration membrane filter, 1 hybrid carbon filter, and 1 primary filter. Cycloclean filters dirt, bacteria, and smell from the raw water (rainwater, river, or lake). The system can purify 5 L of raw water in one minute.

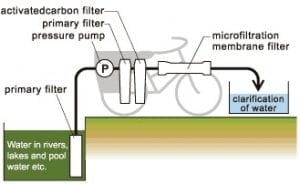

Product Schematics

Technical Support

Technical support is provided by Nippon Basic Co. Ltd.

Replacement Components

Parts are not sold separately.

Lifecycle

Unknown

Manufacturer Specified Performance Parameters

CycloClean can produce 5-6 liters of drinking water per minute.

Vetted Performance Status

UNIDO states that a unit of this technology can produce 5 liters of clean drinking water per minute from raw water, however, there was no evaluation of microorganism reduction.

Safety

Seawater is not appropriate to be used as a water supply.

Complementary Technical Systems

Clean water storage container and supply of untreated water.

Academic Research and References

Compliance with regulations

None

Evaluation methods

The product has been evaluated through field tests and laboratory analysis of the filtration rate.

Other Information

Other products by the manufacturer available on the same mechanism.
