Dankoff Solar Force Piston Pump

Product Description

Solar Force Piston Pump is a robust pump used for irrigation that uses electricity generated from a photovoltaic array. It is an alternative to fuel-burning engines, wind turbines, and generators. The pump is mainly used for irrigation, livestock, medical clinics, domestic and village use, water purification systems, and camp sites.

Market Suggested Retail Price

$5,241.00

Target Users (Target Impact Group)

Distributors / Implementing Organizations

Dankoff Solar Pumps has worked with many organizations across the world but mostly with Dealers worldwide including Solar Power & Pump Co, MSF Farm, and Imres. Value-added resellers Neiman Environments Inc, NGO's including ALTECH s.a., Imres b.v, and Solar Electric Light Fund (SELF)

Manufacturing/Building Method

This product is mass-produced and made in the USA.

Intellectural Property Type

Other

User Provision Model

Users can obtain the Solar Force Piston Pumps from:

Dealers worldwide including Solar Power & Pump Co, MSF Farm, LLC, Energy Concepts, among many others.
Value-added resellers Neiman Environments Inc.
NGO's including ALTECH s.a., Imres b.v, and Solar Electric Light Fund (SELF)
and from online stores like Amazon, Altestore, The Solar Store.

Distributions to Date Status

Unknown

Design Specifications

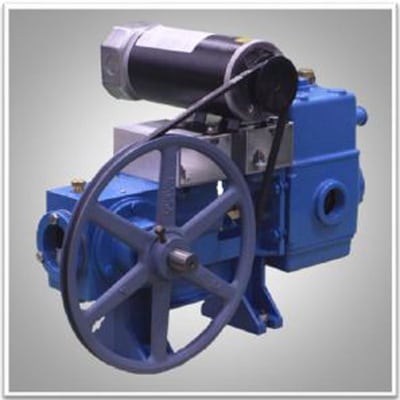

Solar Force Piston Pump is a positive displacement piston pump that uses DC power generated from a photovoltaic solar array. Its body is made of cast iron, and the valve seats and cylinder are made of brass. In addition, it has leather cup piston seals, neoprene valve seals, oil bath crankcase, gear(timing) belt drive on PV models, Standard V belt on B models, pressure relief valve, permanent magnet DC motor, and surge tank.

Technical Support

2 years warranty is provided against defects in material or workmanship

Replacement Components

The components are available from dealers or can be ordered on online stores like: Amazon, Altestore , The Solar Store.

Lifecycle

It has life expectancy of 20 years with a 5-10 year maintenance interval.

Manufacturer Specified Performance Parameters

Performance targets include Total Dynamic Head (TDH), max flow per hour, and max suction lift.

Vetted Performance Status

Unknown

Safety

Safety instructions include the following but are not limited to:
