EarthEnable Floors

Target Users (Target Impact Group)

Distributors / Implementing Organizations

Ditstributed by the manufacturer EarthEnable

Manufacturing/Building Method

This product is mass-produced in Uganda and Rwanda. It is constructed on-site by trained masons from Earthenable. They train local Rwandans as masons to learn exactly how to create and install an earthen floor. Then, the masons can go out and become income-generating entrepreneurs utilizing their new skills. They also hire and train helpers for the masons, chemists, managers, administrative staff, and student interns.

Intellectural Property Type

Other

User Provision Model

Users can obtain the product and service from the manufacturer.

Distributions to Date Status

242,308 m² of flooring installed as of May 2021

Design Specifications

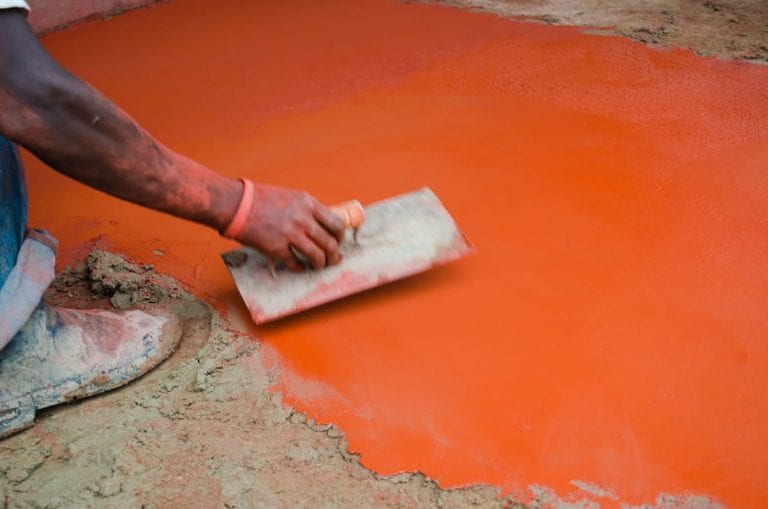

An earthen floor is an ancient flooring technique that has been revived and modernized in recent years. Earthen floors are made of natural materials sourced locally (gravel, laterite, sand, clay, and water). Earthen floors utilize layers to make them as strong and resilient as possible. The gravel layer is applied first, followed by the laterite layer, and then a clay/sand/laterite mix. All of these layers are compacted manually. Finally, the top layer is made of sand and clay, which is troweled flat. The floor is then sealed by a layer of drying oil that polymerizes as it dries to form a plastic-like resin on the floor. In the US, linseed oil is traditionally used. However, given that linseed oil is expensive, not locally available in Rwanda, and slightly noxious, co-founder Rick Zuzow formulated an alternative oil that converts soya bean oil into a similarly performing drying oil free from noxious fumes and can be produced at a fraction of the cost.

Technical Support

Users can contact the manufacturer for technical support through their trained masons.

Replacement Components

To be replaced, the floor needs to be removed and redone either completely or in sections. More oil needs to be purchased from the manufacturer.

Lifecycle

EarthEnable anticipates that the floor will last 10-15 years and that revarnishing will be required every few years. Customers can do the revarnishing by purchasing a varnish bottle and re-applying it according to Earth Enable's floor maintenance manual. Another option would be to contact EarthEnable to have one of their trained employees re-apply the varnish. This service would be free if within the 6 month warranty period, or otherwise would have a small fee.

Manufacturer Specified Performance Parameters

Manufacturer performance targets include health (ability to clean the floor), affordability, job creation, sustainability, and the scaleability of implementation.

Vetted Performance Status

None

Safety

No known safety hazards are related to this product.

Complementary Technical Systems

None

Academic Research and References

Compliance with regulations

None

Other Information

This video shows the EarthEnable Flooring Process. The annual reports are also found on their website; the 2020 report can be found here.
