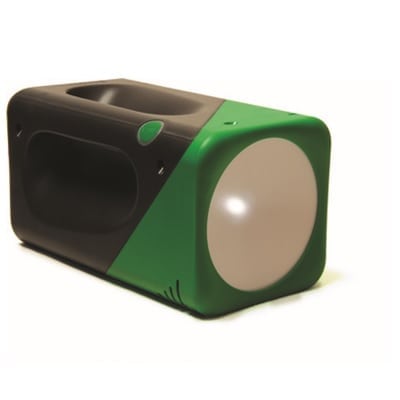

ECCODiva 118

Target Users (Target Impact Group)

Distributors / Implementing Organizations

Amazon, Flipkart, Pepperfly, Waamall, Waaree

Manufacturing/Building Method

This product is mass produced in India.

Intellectural Property Type

Patent Protected

User Provision Model

Users can obtain this product through Amazon, Flipkart, Pepperfly, Waamall, Indiamart, and Waaree.

Distributions to Date Status

Over 50,000, as of August 2016.^{Interview with Representative in 2016}

Design Specifications

The product includes an ECCODIVA Lamp, connecting Wire, instruction Manual, 2 W Solar Panel, Nokia, and micro and mini USB converter cables. The product has a mobile charging feature with 4 adapter tips, 5 in 1 lamp functions that allow it to be reconfigured as a torch, study lamp, lantern, wall light, and ceiling light, 2.7 W Polycrystalline silicon 7.4 V solar panel, and a 1600 mAh Lithium-ion battery. It can charge up to 5 lamps with its 20 W Polycrystalline Photovoltaic Solar Panel Module. The product has a Lithium Ion 500 - cycle battery 2 x 3.7 V/ 2200 mAh, and a battery management system with overcharge protection and low battery cut offs. In addition, it supplies 250 hours of Kerosene Lantern equivalent light on a single charge. The dimensions are 254 x 254 x 457 cm, and the weight is 1.3 kg.

Technical Support

Provided by the manufacturer.

Replacement Components

Replaceable components provided by ECCODiva.

Lifecycle

The product has a 2-year warranty with the exception of the battery, which has a 9-month warranty.

Manufacturer Specified Performance Parameters

This product was designed to charge up to 85% efficiency and power multiple lamps.

Vetted Performance Status

Results from Lighting Global's testing determined a full battery run time of 9.7 hours on high and 15 hours on medium. The run-time per day of solar charging was 8.3 hours on high and 12 hours on medium. The total light output was 82 lumens on high and 58 lumens on medium. The total lighting service was 680 lumen-hours/ solar-day on high, and 700 lumen-hours/ solar-day on medium. The lamp type is a single LED Lumen maintenance, and it retains 104% of original output after 2,000 hours run time.

Safety

Users must take appropriate precautions when using electrical devices.

Complementary Technical Systems

None

Academic Research and References

Compliance with regulations

This product meets the Lighting Global Global Quality Standards in truth in advertising, lumen maintenance, quality, and warranty.

Other Information

None
