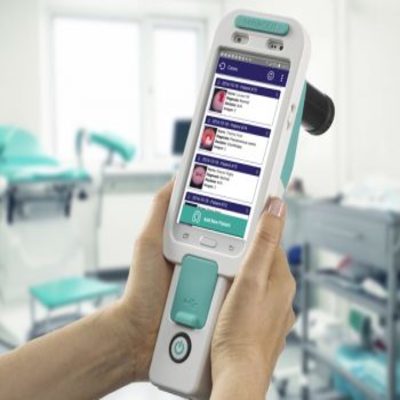

EVA System

Target Users (Target Impact Group)

Distributors / Implementing Organizations

Distributed by Mobile ODT and distribution partners

Manufacturing/Building Method

Unknown

Intellectural Property Type

Open Source

User Provision Model

This product is distributed by MobileODT distribution partners to doctors in the hospital.

Distributions to Date Status

Unknown

Design Specifications

Operating System : Android 7 Processor : 1.6 GHz octa-core : Android 7 Display : Super Amoled 720×1280 pixels HD 131.8 mm Camera

• CMOS sensor, 13 MP resolution
• Working Distance Magnification (250 mm-400 mm)
• 4.0 X optical / 16X with digital zoom (at 225 mm)

• FHD (1920×1080@30fps)
• Playing format : MP4

• Wi-Fi / Bluetooth v4.1
• 2G GSM, 3G WCDMA, 4G LTE FDD, 4G LTE TDD

• Micro USB charger 5V DC
• Two batteries: 3000 mAh (cellular unit) 6500 mAh (system unit)

• 6000k 3W LED (3.6V)
• Wire-grid polarizer for glare reduction

• Colposcope : 24.39 cm x 8.1 cm x 10.41 cm
• Packaging " 16 cm x 29.4 cm x 24.4 cm

Technical Support

Provided by manufacturer

Replacement Components

N/A

Lifecycle

5 - 10 years

Manufacturer Specified Performance Parameters

Designer specified performance targets include: high-speed of detection, portable, and low-cost

Vetted Performance Status

Unknown

Safety

Users must take appropriate precautions when using electrical devices.

Complementary Technical Systems

None

Academic Research and References

Compliance with regulations

The product is certified by USFDA.

Other Information

None
