Folia Filter

Target Countries

Bangladesh, India, Indonesia

Target SDGs

Market Suggested Retail Price

$0.23

Target Users (Target Impact Group)

Household

Distributors / Implementing Organizations

Folia Water

Competitive Landscape

Direct competitors include Ceramic Filter UTP, EcoFiltro, and Nazava Water Filter.

Manufacturing/Building Method

This product is currently in the prototyping phase and as such is batch produced 100,000 units at a time at the Pilot Paper Plant facility of Western Michigan University in Kalamazoo, Michigan.

Intellectural Property Type

Patent Protected

User Provision Model

Users can obtain Folia filters from small and large scale retail stores.

Distributions to Date Status

None

Design Specifications

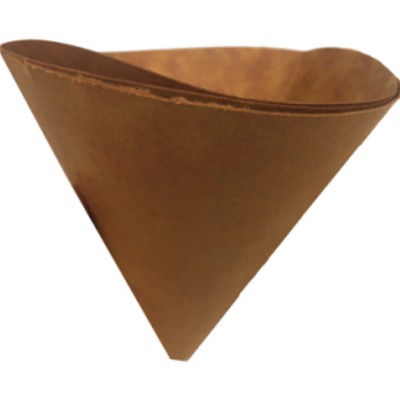

The Folia Filter is a silver nanoparticle coated paper microfilm. As water passes through the filter, larger debris, dirt, and microorganisms are trapped by the small porous nature of the paper filter. Additionally, the water which passes through the filter carries silver cations that act to kill bacteria and other organisms by denaturing metabolic enzymes.

Product Schematics

Technical Support

Safety precautions are provided by the manufacturer.

Replacement Components

N/A

Lifecycle

20 L and then needs to be replaced

Manufacturer Specified Performance Parameters

The filter was designed to reduce bacteria by 99.9999%, viruses by 99.9%, protozoans by 99.99%, and iron by 99.8%.

Vetted Performance Status

Live bacteria testing trials performed in-house, results of testing are unknown.

Safety

The filter should not be stored outdoors and always kept in its protective bag until used. For an unopened bag of filters, the shelf life is 12 months. The filter should not be used when the color has changed and/or the filter itself is torn/ripped.

Complementary Technical Systems

The filter requires a funnel to store the technology for use as well as two separate water storage containers, preferably 2 L water bottles

Academic Research and References

Compliance with regulations

The product meets the expectations of the WHO with a maximum of 100 ppb of silver particles in the effluent water supply.

Evaluation methods

Live bacteria testing trials

Other Information

None
