G2E Biomass Gasification Plant

Market Suggested Retail Price

$1,000,000.00

Target Users (Target Impact Group)

Distributors / Implementing Organizations

G2E (Green To Energy)

Manufacturing/Building Method

The technology is being produced in Asia. For the demonstration center, the four gasifiers were manufactured in India (2), China (1) and the United States. G2E is a licensed distributor for all the biomass plants. However, G2E improves the plants using their expertise, making possible the use of various types of residual biomass. ^{Interview with representative} As of July 2016, G2E plans to produce products in Mexico. ^{Interview with representative}

Intellectural Property Type

Patent Protected

User Provision Model

Users can contact G2E to get information, advice, and support. For rural areas, G2E relies on subsidies to install the product. For businesses, they evaluate the point of profit of the technology, depending on the type of plant and biomass used. ^{Interview with representative}

Distributions to Date Status

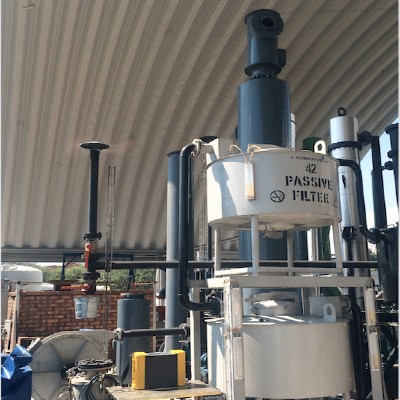

As of July 2016, there are three projects in Mexico. Customers include three corn seed producers and one tequila distillery. Watch the demonstration centers with the 4 gasifiers in Mexico City. [caption id="attachment_23464" align="alignnone" width="300"] Demonstration Center in Mexico[/caption]

Design Specifications

The biomass demonstration center consists of 4 gasifiers with different primary fuel and technology modifications. Two of them are manufactured in India: combo-40 and PG-45. The center also carries auxiliary equipment for the preparation of biomass, consisting of pre-treatment equipment including driers and compactors for briquetting as well as water scrubbing for the cleaning of synthesis gases (one of the gasification technologies) and a motor with internal combustion, loaned by the company Cummins. Among the several types of biomass residues tested, corn cob and coconut have proven to be more efficient. They do not require pre-treatment and produce high-quality gas that does not need scrubbing. ^{Interview with representative} [caption id="attachment_19814" align="alignnone" width="300"] Biomass plant 3 (made in India)[/caption] [caption id="attachment_19813" align="alignnone" width="300"] Biomass plant 2 (made in India)[/caption] [caption id="attachment_19812" align="alignnone" width="226"] Biomass plant 1 (made in USA)[/caption] [caption id="attachment_19811" align="alignnone" width="300"] Briquetting machine[/caption]

Technical Support

G2E provides support to the users ^{Interview with representative}

Replacement Components

G2E provides replacement parts ^{Interview with representative}

Lifecycle

The average lifetime of a plant is 25 years.

Manufacturer Specified Performance Parameters

Designer specified performance targets include affordable and modular.

Vetted Performance Status

G2E estimates that the conversion efficiency of biomass into syngas is 80-85%, of syngas into thermal energy is 90%, of syngas into electrical energy is 35% and of biomass into biochar is 10-12%. ^{Interview with representative}

Safety

There are some potential dangers operating the biomass plant: noise, hazardous waste material disposal, voltage.

Complementary Technical Systems

None

Academic Research and References

Compliance with regulations

None

Other Information

G2E receives funding from Universidad Nacional Autónoma de México (UNAM) and SAGARPA, Secretaría de Agricultura. The offices and warehouses were built based on containers and recycled material, with the idea of matching the use of "material" of little value. The office has a classroom-auditorium for dissemination and training. More photos of Biochar, used to capture CO2: [caption id="attachment_19818" align="alignnone" width="300"] Biochar[/caption] [caption id="attachment_19819" align="alignnone" width="231"] Biochar[/caption]
