Green Heat Biogas Digester

Target Users (Target Impact Group)

Distributors / Implementing Organizations

Green Heat, Clean Cooking Alliance

Manufacturing/Building Method

Unknown

Intellectural Property Type

Patent Protected

User Provision Model

The biogas digesters are designed and built by Green Heat, after a free feasibility study conducted by the same company. Customers can request information through the company's website.

Distributions to Date Status

By 2017, 580 biogas digesters have been installed in Haiti and different countries across Africa.

Design Specifications

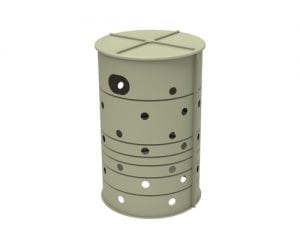

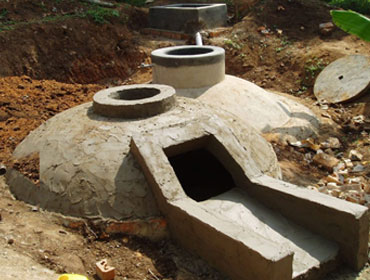

Green Heat Biogas Digesters use Slurry Separation Technology (SST), which separates the slurry from water, creating dry fertilizer and recycling the water within the digester for the biofuel generation. Depending on the customer's specific needs and capacity, fixed dome or portable, flexible balloon digesters are available. Fixed domes are widely used by schools and institutions with waste management purposes, while flexible balloon digesters are commonly adopted in households with biofuel generation purposes. The biodigesters can use rainwater, wastewater, and urine as input. Additionally, the SST system can be implemented in older digesters. Green Heat aims to build personalized biogas digesters, adapted to the customer's needs and capabilities. The SST system can also be integrated into traditional biodigesters.

Technical Support

Provided by the manufacturer.

Replacement Components

Unknown

Lifecycle

25 years

Manufacturer Specified Performance Parameters

This product targets to reduce water utilization by 80% with respect to other biodigesters, by recycling the water from the waste. The dry fertilizer created from the waste can boost crop yield by up to 270%. The energy saved by using biogas for cooking and heating is double than that of traditional digesters. Additionally, the use of biofuel generated by the digesters can mitigate or even eliminate the reliance on charcoal and wood, helping to reduce deforestation.

Vetted Performance Status

Unknown

Safety

There is a minor risk of explosion from methane build up.

Complementary Technical Systems

None

Academic Research and References

Compliance with regulations

Unknown

Other Information

Infographics of this product and working principles.
