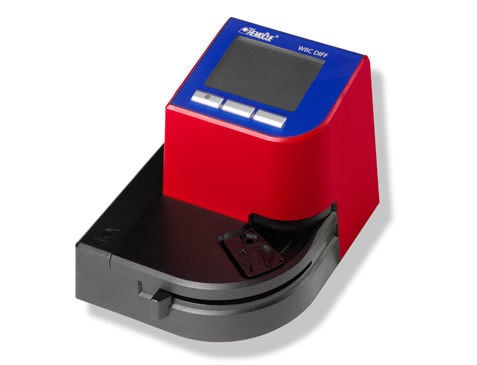

HemoCue WBC DIFF System

Product Description

The HemoCue WBC DIFF System measures white blood cell (WBC) count including a five-part differential at the point of care in order to rapidly provide information about the state of the immune system to medical professionals.

Market Suggested Retail Price

$2,000.00

Target Users (Target Impact Group)

Distributors / Implementing Organizations

Distributed by manufacturer

Manufacturing/Building Method

Waiting for response from manufacturer

Intellectural Property Type

Patent Protected

User Provision Model

A WBC DIFF can be purchased from contacting HemoCue on their website. Additional websites, such as Wilburn Medical, also carry the device.

Distributions to Date Status

Unknown

Design Specifications

A drop of blood is put into the Hemocue system and within 5 minutes, information about immune cell count is displayed. This video provides an overview of the product while this video shows a step-by-step use of the product.

Technical Support

Provided by manufacturer

Replacement Components

Replacement consumables can be purchased from contacting HemoCue on their website. Additional websites, such as Wilburn Medical, also carry the replacement consumables.

Lifecycle

5 - 10 years

Manufacturer Specified Performance Parameters

The manufacturer specifies a detection range of 300-30000 cells/µL, with a sample volume of 10uL, and a measurement time of less than 5 minutes. Source: WBC Diff Product Sheet

Vetted Performance Status

In the independent study by Hammersmith Hospital, the device provided reliable comparability in the range of 0.4–30.0 × 109/l. This is slightly narrower than the range of 0.3–35 × 109/l specified by the manufacturer; however, samples with WBC < 0.4 × 109/l were flagged as low (code LLL) and conversely, those with counts above 30.0 × 109/l were flagged as high (code HHH); thus, in a clinical setting, this flagging would provide adequately reliable information.

Safety

Unreliably measuring immune function could provide incorrect information to doctors, leading to incorrect diagnosis and treatment.

Complementary Technical Systems

None

Academic Research and References

Osei-Bimpong, A., Jury, C., McLean, R., Lewis, S.M. “Point-of-care method for total white cell count: an evaluation of the HemoCue WBC device.” Int. J. Lab Hematol, 31:6 (2009)

Casey, Janet R., and Michael E. Pichichero. 2009. “A Comparison of 2 White Blood Cell Count Devices to Aid Judicious Antibiotic Prescribing.” Clinical Pediatrics 48 (3): 291–94.

Russcher, H., N. Van Deursen, and R. de Jonge. 2013. “Evaluation of the HemoCue WBC DIFF System for Point-of-Care Counting of Total and Differential White Cells in Pediatric Samples.” Ned Tijdschr Klin Chem.

Lindberg, Stellan, Inger Jönsson, Magnus Nilsson, Elin Johnsson, and Tomas Jonasson-Bjäräng. 2014. “A Novel Technology for 5-Part Differentiation of Leukocytes Point-of-Care.” Point of Care 13 (2).

Compliance with regulations

None

Other Information

None
