Incubaby Neonatal Incubator

Product Description

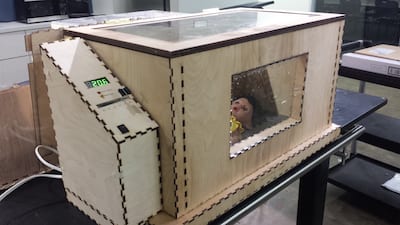

Incubaby is a low-cost solution to the condition of hypothermia in infants developed by a team of engineering students at Rice University. Hypothermia, a dangerous condition in which the baby’s temperature falls below 36 degrees Celsius (96.8 degrees Fahrenheit), is quite common in infants. The innovation works by increasing the core temperature of the body of the infants using electronics, shielded by double-wall plywood panels. The prototype can be manufactured and assembled locally in developing countries. The prototype consists of two boxes: one to hold the baby and one to hold the electronics. The students plan to ship the final prototype of the IncuBaby incubator to Queen Elizabeth Central Hospital in Malawi.

Target Users (Target Impact Group)

Distributors / Implementing Organizations

Rice Engineering Alumni and BTB - HHMI

Manufacturing/Building Method

The prototype was designed and built by a team of engineering students at Rice University. The product is assembled with laser-cut plywood, acrylic windows in the top and front, and polystyrene foam for insulation. The product can be manufactured locally or remotely and shipped.

Intellectural Property Type

Open Source

User Provision Model

The product is in the development phase and the design team is piloting the project at Queen Elizabeth Central Hospital in Malawi.

Distributions to Date Status

None

Design Specifications

The low-cost incubator designed and built at Rice University’s Oshman Engineering Design Kitchen uses heating pads and simple materials to keep an infant’s body temperature stable while providing temperature feedback. The material used for the fabrication of the prototype is birch plywood and acrylic with polyurethane foam to provide insulation in the walls of the system. All materials were specified as they are easily available in workshops of developing countries. Regulated by a micro-controller, the heating pads receive inputs from a thermistor which is mounted onto the body of the infant, keeping the infant's temperature at homeostasis. An alarm system alerts the care provider of overheating or power loss.

Technical Support

Provided by the manufacturer

Replacement Components

Unknown

Lifecycle

Unknown

Manufacturer Specified Performance Parameters

The incubator can maintain an infant's temperature within +/- 1 degree Celsius of the desired body temperature and has less than 2.5 % error.

Vetted Performance Status

The product is still in the prototype phase.

Safety

If the feedback system that reads the infant's temperature fails, the infant health might be compromised.

Complementary Technical Systems

A reliable power source is required to keep the incubator functioning. The incubator can be run on battery as well in the areas where continuous power supply is not available.

Academic Research and References

Tlebere, P., Jackson, D., Loveday, M., Matizirofa, L., Mbombo, N., Doherty, T., … & Chopra, M. (2007). Community?based situation analysis of maternal and neonatal care in South Africa to explore factors that impact utilization of maternal health services. The Journal of Midwifery & Women’s Health, 52(4), 342-350.

Compliance with regulations

Unknown

Other Information

None
