Isla Urbana Chaac Kit

Target Countries

Mexico

Target SDGs

Market Suggested Retail Price

$408.00

Target Users (Target Impact Group)

Household

Distributors / Implementing Organizations

Area Akvo S.A. de C.V., Inverso, Captacion Muunyal A.C., Ecotec-IK, Ciclo Water, 345 Ingenieria S.A. de C.V., MABA water, Asesores en Gestion Urbana del Agua S.A de C.V., Grup Constructor CYPRO SA de CV

Manufacturing/Building Method

This product is made in Mexico by Isla Urbana.

Intellectural Property Type

Open Source

User Provision Model

Users can obtain the product directly from Isla Urbana or from a variety of distributors throughout Mexico.

Distributions to Date Status

By 2020, 550 had been distributed.

Design Specifications

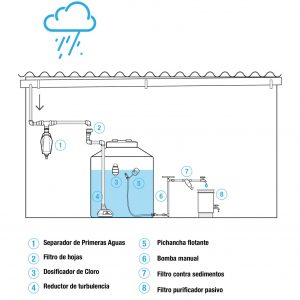

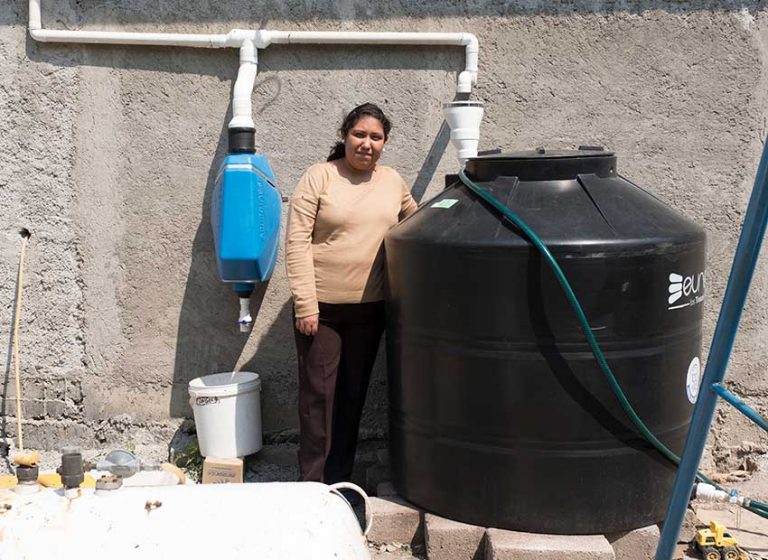

The Isla Urbana Chaac Kit is composed of 8 different parts. Rainwater collected from the gutter attached to the roof of the structure is collected into a pipe system where it first passes through a first flush separator to collect dirty water and debris. After this, water passes through a leaf filter for large debris and enters into the on-site storage tank where its momentum is reduced through a turbulence reducer. Next, a chlorine doser and float switch disinfect the water while notifying the user when the tank reaches a certain level. Then, a manual hand pump pushes the water from the tank into a small sediment filter and finally a passive water purification tank where the water is then ready to drink.

Product Schematics

Technical Support

Provided by Isla Urbana for purchases of systems in quantities greater than five.

Replacement Components

Replaceable components include the chlorine system and the micro-filtration filters.

Lifecycle

Unknown

Manufacturer Specified Performance Parameters

Unknown

Vetted Performance Status

Unknown

Safety

No known safety hazards are related to this product.

Complementary Technical Systems

None

Academic Research and References

Compliance with regulations

Unknown

Evaluation methods

Unknown

Other Information

None
