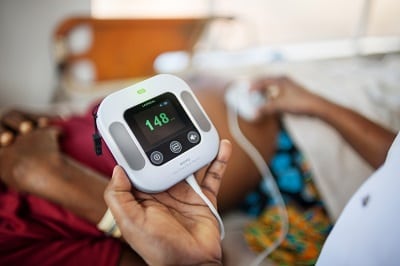

Moyo Fetal Heart Rate Monitor

Target Regions

Worldwide

Target SDGs

Market Suggested Retail Price

$198.00

Target Users (Target Impact Group)

Community, Small and Medium-sized Enterprises

Distributors / Implementing Organizations

Laerdal Global Health

Manufacturing/Building Method

Moyo is currently manufactured in China in batches (Per Interview with representative)

Intellectural Property Type

Patent Protected

User Provision Model

Moyo can be purchased on the Laerdal Global Health website at a subsidized price of $198 with the online order form.

Distributions to Date Status

739 devices have been sold and 100+ have been donated by Laerdal as of August 2017. Interview with representative

Design Specifications

Moyo is designed for continuous and intermittent fetal heart rate monitoring. The device uses a 9-crystal Doppler ultrasound sensor that enables detection of the fetal heart rate in less than 5 seconds. The detection area is 900 cm2 which makes palpating and aiming for the heart less critical. The device is also equipped with dry electrodes which allow the health care provider to easily compare maternal pulse with FHR. The default display for Moyo includes the present heart rate measurement, battery level, and Doppler volume level. The user interface also includes a history graph feature to review measurements obtained during the last 30 minutes. Moyo includes an audiovisual alarm that is triggered by lost FHR (no FHR or <50 bpm lasting for 60 seconds), abnormal FHR (<100 bpm or >180 bpm lasting for more than 3 minutes), or low battery. The device contains an internal rechargeable battery that has a run time of 10 hours and takes 5 hours to recharge. The device draws .74 W when in use. The probe has a frequency of 1MHz and an intensity of <5 mW/sq. cm. The thermal index (TI) and mechanical index (MI) of the probe are always below 1.0. Moyo uses a proprietary software that is language independent and allows for the configuration of some settings by user. The device includes a neck strap that is designed to enable mobility of the mother during continuous monitoring. The device also includes an belt to attach the transducer to the abdomen. Dimensions: 96 x 96 x 24 mm; Weight: 300 g; Operating temperature: 0-40 °C; Storage/shipping temperature: -30-70 °C Storage/shipping air pressure: 550-1060 hPa; Operating/storage/shipping humidity: Up to 95% RH, non-condensing Ingress protection: IP41 The device and its accessories can be cleaned or disinfected with either a soapy water, 70% ethanol solution, or bleach solution. Instructions for cleaning and disinfection procedures for each component are found in the Directions for Use. Moyo is to be disposed of in an appropriate recycling facility in accordance with local regulations.

Product Schematics

Technical Support

There are no serviceable parts in the system. A 1-year warranty is provided under the Laerdal Global Warranty . Laerdal Global Health recommends that customers contact them through their online customer feedback form or email if a product is malfunctioning.Interview with representative. Troubleshooting guidance is available for the user in the Directions for Use. Laerdal Global Health shares the materials for an evidence-based training program that is being tested in Tanzania to implementing partners upon request.Interview with representativeJhpiego and ACOG are currently developing a training program for Complicated Labour and Birth which will deal with issues around prolonged labour and abnormal fetal heart rate.Interview with representative

Replacement Components

Moyo does not have any replaceable parts, including the battery. Accessories for the device (abdominal transducer belt, neck strap, and battery charger and cable) can be independently replaced.

Lifecycle

The estimated lifetime and shelf life is 2-5 years.

Manufacturer Specified Performance Parameters

The ultrasound transducer can detect heart rate within the range of 50-250 bpm with short term average accuracy of ±5 bpm in the range of 50-200 bpm. The maternal heart rate electrodes have a display range of 30-250 bpm with short term average accuracy of ±5% or ±5 bpm, whichever is greater, in the range 50 – 150 bpm.

Vetted Performance Status

Randomized control trials are being conducted in two referral hospitals in Tanzania. One study is comparing Moyo to Doppler and the other is comparing Moyo to hand-held fetoscopes. A parallel study is being conducted by Laerdal Global Health's implementing partners in Tanzania that aims to demonstrate the efficacy of Moyo when coupled with an evidence-based training program. Moyo is also being used to monitor fetal heart rate in a clinical study in Nepal that is investigating the effect of timing of cord clamping in newborns. Moyo will also be used in a study on the indicator for stillbirth.Interview with representative Results: Continuous Moyo compared to intermittent Pinard in Haydom or Freeplay Doppler in Muhimbili was shown to have a higher abnormal FHR detection rate. When given the option to choose among Moyo and the other available FHR monitoring devices, almost 90% of health care providers chose to monitor using Moyo in Dongobesh. Use of Moyo was associated with improved monitoring and documentation. In Temeke, the use of Moyo decreased rate of lack of documentation and showed a significant increase in frequency of monitoring. Interview with representative

Safety

Precautions and warnings for Moyo are listed in the Directions for Use.

Complementary Technical Systems

A reliable power source must be used to recharge the product battery.

Academic Research and References

Compliance with regulations

CE marked (class II medical device), ISO 13485, EN 1789:2007 +A1:2010, EN ISO 10993-1:2009 / AC:2010, EN ISO 14971:2012, EN 15223:2012, EN 60601-1:2006 + A1:2012, EN 60601-1-2:2007 / AC:2010, EN 60601-1-6:2010, EN 60601-1-8:2007 /A1:2013, EN 60601-2-37:2008/A11:2011, EN 62133:2013, EN 62304:2006 / AC:2008

Other Information

Moyo is a recipient of the 2014 Saving Lives at Birth grant, Commercial Equipment Award at the Core77 Design Awards 2016, and 2016 Design Award from the Norwegian Centre for Design and Architecture.
