Multi 300 XL

Product Description

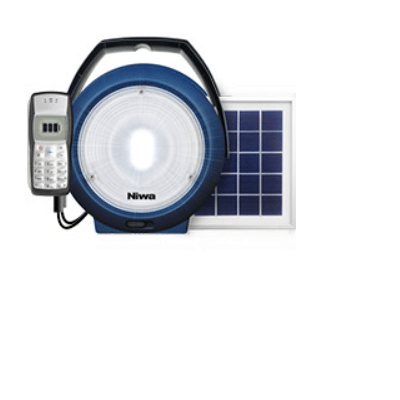

Multi 300 XL is a solar home system that has a polycrystalline silicon 3W solar panel, not-easily-replaceable lithium iron phosphate 3100 mAh 3.2V battery, and one LED light point.

Target Users (Target Impact Group)

Distributors / Implementing Organizations

Niwa - Next Energy Products Ltd.

Manufacturing/Building Method

Mass produced

Intellectural Property Type

Trademarked

User Provision Model

Distributed by Niwa - Next Energy Products Ltd.

Distributions to Date Status

Unknown

Design Specifications

Solar Panel: Polycrystalline Silicon, 3.4 watts. Battery: Not easily replacible with common tools, Lithium iron phosphate, 3100mAh, 3.2V. Lamp: Two arrays with 6 LEDs each, CRI 85 CCT "Near Daylight" 5000-7000K, wide distribution. 5 brightness settings: Ultra, High, Mid, Low, and Bedlight.

Technical Support

Available from the manufacturer.

Replacement Components

Battery replacement available from manufacturer.

Lifecycle

Batteries - 3 Years

Manufacturer Specified Performance Parameters

Available from the manufacturer

Vetted Performance Status

Lighting Global has vetted the following performance parameters; 1. Truth in Advertising 2. Lumen Maintenance 3. AC-DC Charger Safety 4. Battery Composition, Battery Protection, Battery Durability. 5. Physical Ingress Protection 6. Water Ingress Protection 7. Drop Test 8. Soldering and Electronics Workmanship 9. Mechanical Durability 10. Minimum Warranty Terms 11. Performance Reporting

Safety

Follow proper electrical installation and control guidelines.

Complementary Technical Systems

None.

Academic Research and References

None.

Compliance with regulations

The Multi 300 XL has complied with the Lighting Global Quality Standards, and has been tested according to the Quality Test Method stipulated in the IEC 62257 – 9 -5 Standard.

Other Information

None.
