NTU Singapore Water Test

Target Regions

Worldwide

Target SDGs

Target Users (Target Impact Group)

Household

Distributors / Implementing Organizations

Unknown

Competitive Landscape

Direct competitors include ANDalyze AND1100 Fluorimeter.

Manufacturing/Building Method

This product is currently in the prototyping phase and not yet manufactured at scale.

Intellectural Property Type

Patent Protected

User Provision Model

The designers have not yet selected their user provision model.

Distributions to Date Status

None

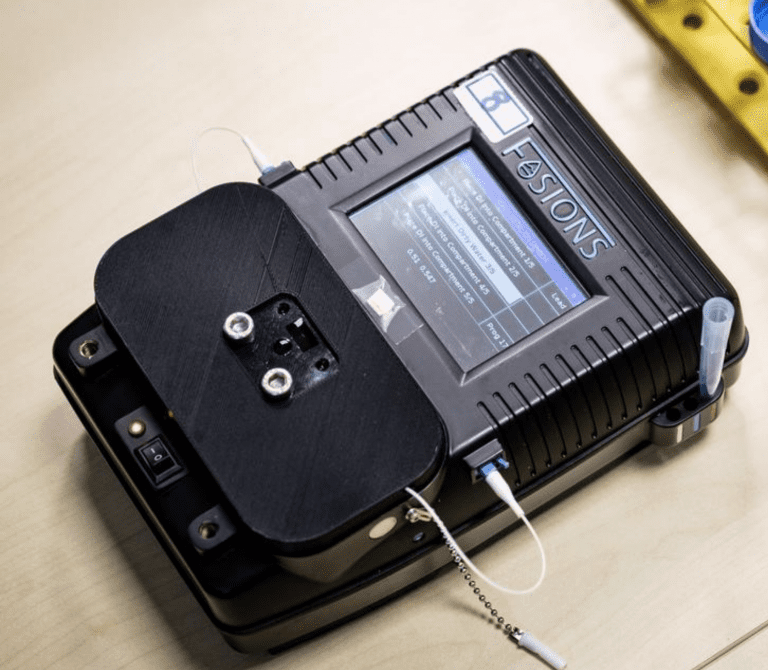

Design Specifications

The device sensing region uses L-glutathione (GSH), a chelating agent which functions to specifically bind Pb2+ onto the optical fiber sensor for on-site detection of heavy metal ions. The detection time is less than five minutes, and can detect up to 24 metal contaminants. The device has an overall dimension of 203 mm × 149.50 mm × 65 mm and weighs 0.8 kg.

Product Schematics

Technical Support

Provided by the manufacturer

Replacement Components

Disposable sensor cartridges

Lifecycle

Unknown

Manufacturer Specified Performance Parameters

The designers aim to have heavy metal tests completed in under five minutes, have the tests perform in temperatures up to 40°C, and have a detection limit of 5 ppb.

Vetted Performance Status

The device demonstrated a measured detection limit of 5 ?g/L and good selectivity toward Pb2+ even with the presence of other metal ions.

Safety

Unknown

Complementary Technical Systems

Battery charging and disposable sensor cartridges

Academic Research and References

Compliance with regulations

The level of sensitivity falls within standards of the World Health Organization and of the Environmental Public Health Act in Singapore.

Evaluation methods

The device was evaluated against ICP-MS screened results and known water samples for heavy metal contaminant sensitivity readings including including for Ca2+, Cs2+, Cu2+, Fe2+, Mg2+, Mn2+, Ni2+, Zn2+, and Cd2+, Pb2+.

Other Information

None
