SAECSA Solar Food Dryer

Product Description

The SAECSA Solar Food Dryer is a solar-powered drying chamber that can be used to dry and preserve fruits, vegetables and grains. It has 8 racks where food can be placed with a maximum capacity of 10 kgs per batch.

Market Suggested Retail Price

$3,821.94

Target Users (Target Impact Group)

Distributors / Implementing Organizations

SAECSA

Manufacturing/Building Method

SAECSA have a photovoltaic module production line in Mexico with a production capacity of 60,000 modules per year. The Solar Food Hydrator is made-to-order and can be customised by contacting the manufacturer.

Intellectural Property Type

Trademarked

User Provision Model

Users can request a quote directly from the manufacturer.

Distributions to Date Status

Since commercialization in 2013, the company has sold 900 basic solar food dryers. ^{Interview with representative}

Design Specifications

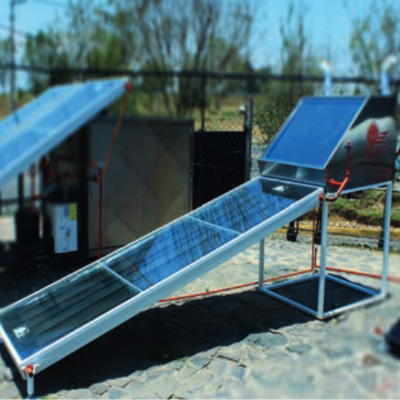

The dryer has a solar collector, metal frame, and a chamber to place the food on racks. It requires an area of 11 m² for installation. The main source of energy is sunlight (some food dryers have a gas backup system) which is captured by the 1.3 m² collector and transmitted to the drying chamber through a coil which contains 60% water and 40% anti-freeze. The water vapor from the product (fruits, vegetables, grains, etc.) builds up internal pressure in the chamber which is regulated through a valve to warm up the pulp initially. The stainless steel chamber has a 10 kg to 20 kg daily drying capacity, a metal support, exhaust valve, and a thermostat.

Technical Support

Provided by the manufacturer, through specialized technicians. ^Interview ^with^{representative}

Replacement Components

SAECSA offers replacement components as part of their service. ^Interview ^with^{representative}

Lifecycle

According to the manufacturer the product lasts between 15 to 20 years. They offer a 5 year warranty on the product. ^Interview ^with ^manufacturer

Manufacturer Specified Performance Parameters

The company aims to reduce, replace or eliminate the use of conventional generators by offering a more affordable, eco-friendly alternative.

Vetted Performance Status

Testing performed by the manufacturer determined a power consumption of 40 W, however, no third-party testing has been completed.

Safety

Potential hazards related to the operation of this product include accidental burning when handling hot trays.
