Solar Shelter Kit

Target Users (Target Impact Group)

Distributors / Implementing Organizations

NRS Relief.

Manufacturing/Building Method

Manufactured by H. Sheikh Noor-ud-Din & Sons (HSNDS) for NRS Relief in Pakistan.

Intellectural Property Type

Trademarked

User Provision Model

Distributed by NRS Relief.

Distributions to Date Status

Unknown

Design Specifications

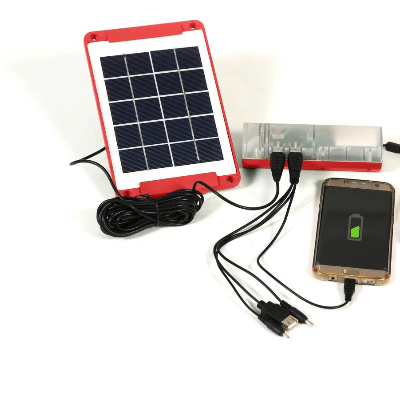

Monocrystalline silicon 2.3 W solar PV module panel Lithium-ion 2300 mAh 3.7 V battery LED Lamp on the front with a semi-transparent cover (Torch mode) and four LEDs on the side with a frosted cover (Room Light mode) CRI 79 CCT 5000-7000K as the color characteristics wide and narrow light distribution type of room light and torch respectively. The lumens for room light high is 140 and 69 lumens for the torch. This product includes a 5 m multi USB mobile phone charging cable, a 3 LED indicator that shows both battery status and charging status, offers 3 lighting settings: high, medium and low.

Technical Support

Available from the manufacturer.

Replacement Components

Available from the manufacturer.

Lifecycle

Battery has a lifecycle of 3 years or > 800 cycles.

Manufacturer Specified Performance Parameters

The manufacturer aims to meet these targets:

• Quick and appropriate deployment during humanitarian disasters
• Torch lasts up to 13 hours and lamp up to 55 hours
• Durable, waterproof, and intuitive interface

Vetted Performance Status

The product is vetted by Lighting Global Quality Assurance Program. This includes:

1. Lumen Maintenance
2. AC-DC Charger Safety
3. Battery Composition.
4. Battery Protection
5. Battery Durability.
6. Drop test
7. Mechanical Durability
8. Minimum Warranty terms
9. Performance Reporting

Safety

Follow proper electrical installation and control guidelines.

Complementary Technical Systems

None.

Academic Research and References

Compliance with regulations

This product has complied with the Lighting Global Quality Standards, and has been tested according to the Quality Test Method stipulated in the IEC 62257 – 9 -5 Standard.

Other Information

None
