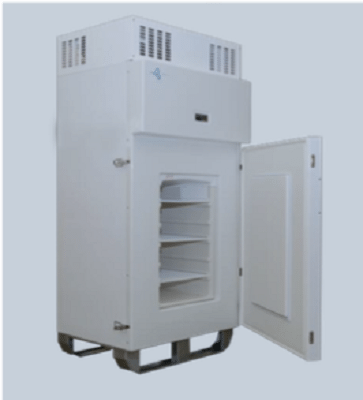

Sure Chill Vaccine Refrigerator BLF100 DC

Product Description

Sure Chill Refrigerators regulate internal temperature and protect vaccine vials from ice, to prevent freezing while keeping the vaccines at the appropriately cold temperature so they can be delivered at efficacy to children and adults throughout the necessary regions. The refrigerator works by surrounding the vaccine vials with cold water.

Market Suggested Retail Price

$3,450.00

Target Users (Target Impact Group)

Distributors / Implementing Organizations

The Sure Chill Company, Godrej Appliances

Manufacturing/Building Method

Manufactured in the UK

Intellectural Property Type

Patent Protected

User Provision Model

Commercially available ^Interview ^with ^{designer, August 2015}

Distributions to Date Status

6,000+

Design Specifications

Sure Chill works on the principle that water is at its densest at 4°C. Water surrounds a Sure Chill refrigeration compartment. When power is supplied to the refrigerator, the water cools and ice is formed above the compartment leaving only water at 4°C and thus cooling the contents. When the power is switched off, the water warms and rises while the ice begins to melt. This keeps only water at a 4°C cooling the contents of the compartment keeping temperatures at 4 to 5°C. The temperature variation within the cabinet is less than 1°C. The solar ‘direct drive’ model of the Sure Chill vaccine refrigerator doesn’t need a battery to maintain cooling performance overnight. In severe power outages, it can keep vaccines at safe temperatures for ~10 days or more at 32°C ambient, and even longer at lower ambient temperatures. Dimensions: 89 cm x 76 cm x 185 cm Power consumption: Solar array 200W to 370W depending on geographical location Minimum rated ambient temperature: 5°C Vaccine storage capacity (litres): 99L Weight: 145 kg For more information, consult the product manual.

Technical Support

Licensed partners provide local technicians in their respective countries ^Interview ^with ^{designer, August 2015}

Replacement Components

Available from the manufacturer as needed ^Interview ^{with designer, August 2015}

Lifecycle

2 year warranty available

Manufacturer Specified Performance Parameters

The temperature variation within the cabinet limited at less than 1°C. The Sure Chill vaccine refrigerator can keep vaccines at safe temperatures for 10 days or more at 32°C ambient, and even longer at lower temperatures. Minimum rated ambient temperature: 5°C. Ice never forms on the cabinet walls

Vetted Performance Status

Independent study showed Sure Chill protects vaccines and provides consistent cooling. Rated Grade-A freeze protection by WHO.

Safety

Vaccines must be stored at the proper temperature to maintain effectiveness.

Complementary Technical Systems

Can be powered by an electric outlet or solar panels.

Academic Research and References

Kartoglu, U., Milstien, J., Tools and approaches to ensure quality of vaccines throughout the cold chain. Expert Reviews: Vaccines [Internet] 2014 [cited 2015 May 29]; 13(7): 843–854.

Sirirat Techathawat et al., Exposure to heat and freezing in the vaccine cold chain in Thailand. Vaccine, Elsevier. [Internet] 2007 [cited 2015 May 29]; 25: 1328-1333.

S. Jones. Sure Chill Refrigeration Technology: Improving the Cold Chain in the Developing World. Global Humanitarian Technology Conference (GHTC), 2011 IEEE. [Internet] 2011 [cited 2015 May 29]: 205-207.

Compliance with regulations

WHO Pre-Qualified under Devices and Equipment category for Ice-Lined Refrigerator; PQS code -E003/019 ISO 9001:2008 certified

Other Information

Winner of the 2018 UK Eagle Lab Innovation category at the Barclays’ annual High-Growth & Entrepreneur Awards
