Trony Sundial TSL02

Target Users (Target Impact Group)

Distributors / Implementing Organizations

• Trony • Partner NGOs: Visionary Empowerment Programme (VEP) • Resellers: Made in China

Manufacturing/Building Method

Mass produced. Minimum order of 100 pieces.

Intellectural Property Type

Patent Protected

User Provision Model

Trony Solar ships worldwide. Regions of focus are South America, Southeast Asia, Africa and the Middle East. Trony East Africa is a subsiduary of Trony and has a warehouse in Nairobi, Kenya. It creates tailor-made products for customers and provides business consulting services and engineering services.

Distributions to Date Status

Unknown (Minimum order: 100 units. Maximum order: 100,000 units)

Design Specifications

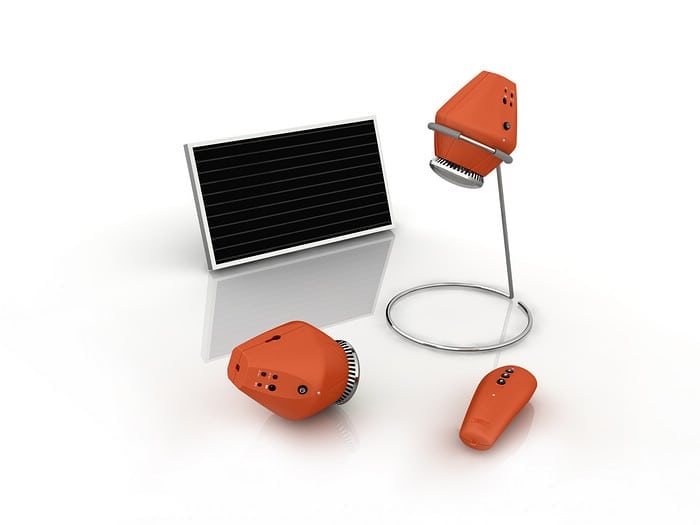

*Main components* • 2 Lamps • Remote control torch • 2-meter charging line • 5-meter charging line • Mobile phone charging connecting line • DC to USB converting line • Lamp Holder • Solar panel(Amorphous, 2.5W) • Mobile phone charging adapter • Battery Cell Type: LiFePO4 *Other details* • Voltage: 3-6V • Certification: RoHS • Light Source: LED Lamp • Solar panel (Amorphous, 2.5W) • Mobile Phone Charging: Charging for mobile phone via standard USB • Separated solar panels and lighting units

Technical Support

Technical support provided through implementing organizations. Training needs are low. Support provided through implementing organizations like Lighting Africa and Sun Power Africa.

Replacement Components

2 year warranty is provided - not clear if replacement components are available only through implementing organizations.

Lifecycle

2 year warranty - covers defects in manufacture under typical use. 5 year service life.

Manufacturer Specified Performance Parameters

*Performance* • Charging Time (H): 10 • Charge mobile phones with the storage battery inside the lamp, even at night • Battery Charging & Discharging Protection • Automatically turns semi-bright when battery is low • The main lamp is able to light up an area of 15 m^2 *Additional Performance* • Automatically turns semi-bright when battery is low • Overcharge and discharge protection feature • Charging Status Indicator • 4 Types of charge adapter for most mobile phones

Vetted Performance Status

*DATA EXPIRED MARCH 2014* Available for view on the Lighting Global Standardized Specification Sheet

Safety

Product is not hazardous by nature.

Complementary Technical Systems

Unknown.

Academic Research and References

Compliance with regulations

Quality Assurance  Standards: TUV SUD Group Design & Development, Manufacture of Solar Cells and Related Products ISO 9001:2008, - Design & Development, Manufacture of Solar Cells and Related Products ISO 14001:2004 - VDE IEC Certificate, - Meets and exceeds Lighting Global Recommended Performance Targets  & Meets Lighting Global Minimum Quality Standards

Other Information

Unknown.
