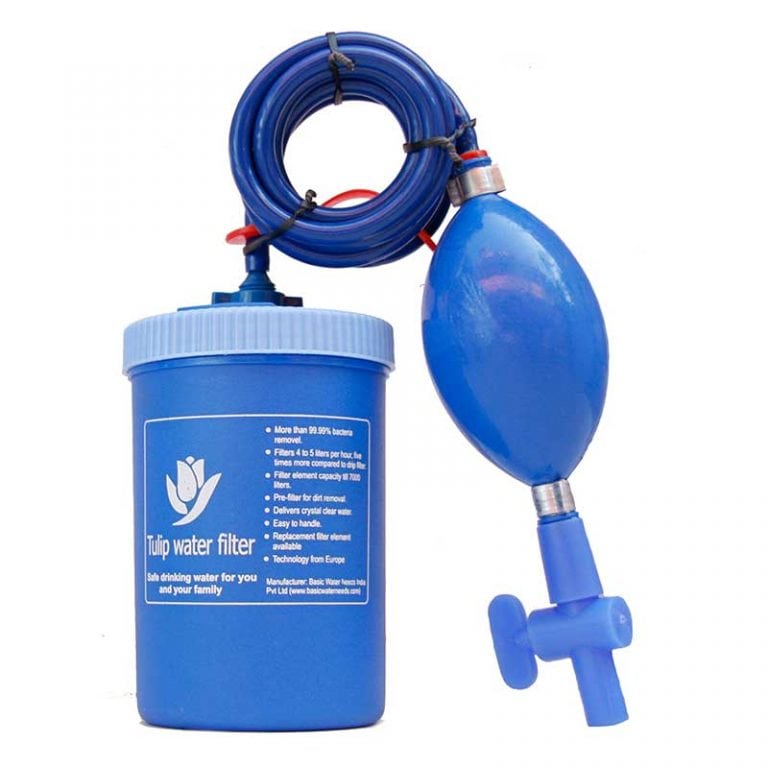

Tulip Siphon Filter

Target Regions

Worldwide

Target SDGs

Market Suggested Retail Price

$20.00

Target Users (Target Impact Group)

Household

Distributors / Implementing Organizations

Local partners in Ethiopia, Zambia, Ecuador and Guatemala. NGOs, commercial networks, national, regional and community entrepreneurs.

Competitive Landscape

Direct competitors include Living Water Treatment Systems.

Manufacturing/Building Method

Ceramic candle filters are manufactured in China using diatomaceous earth, nano silver, and activated carbon. Production locations include China, India, and Kenya.

Intellectural Property Type

Patent Protected

User Provision Model

Basic Water Needs partners with local entrepreneurs, NGOs and other organizations to establish local distribution networks.

Distributions to Date Status

Including filter models in addition to the Siphon model, roughly 500,000 Tulip units have been distributed. Correspondence with manufacturer

Design Specifications

Dimensions: 20.5 x 14 x 9 cm Weight: 0.5 kg

Product Schematics

Technical Support

Provided by user: When flow rate slows, clean filter by backwashing by closing the tap and squeezing the rubber bulb, to force water back through the filter element. If sufficient flow rate is not restored, scrub filter with included scrub pad. Users should check filter diameter using the tool provided, and when diameter is less than indicated on the tool, the ceramic filter should be replaced. A washable pre-filter can be used when filtering turbid water to reduce clogging.

Replacement Components

Replacement components are available through local agents or distributors.

Lifecycle

7,000 liters or until diameter less than indicated.

Manufacturer Specified Performance Parameters

Performance targets: Capable of removing 99.995% bacteria, >99.995% protozoa, and 99% turbidity. Flow rate is up to 5 L/hr.

Vetted Performance Status

Laboratory testing: Removal efficiency of Silver impregnated Ceramic filters

Safety

2.5 – 6.5 ppb silver in filtered water, below US Environmental Protection Agency (EPA) and WHO secondary standards for silver in drinking water (0.1 mg/L).

Complementary Technical Systems

To preserve filtered water quality, use with a safe water storage container with lid and tap.

Academic Research and References

Compliance with regulations

Malawi Ministry of Health approval, Philippines DOH Certification (expired May 2015), National Laboratory test results

Evaluation methods

Laboratory and field evaluations

Other Information

Selected as one of Toekomstmakers Top 100 in 2015. Other Tulip technologies include: the Tulip Table Top and Tulip Group Filter.
