Turbulent Vortex Turbine

Market Suggested Retail Price

$1,100,000.00

Target Users (Target Impact Group)

Distributors / Implementing Organizations

Partners and Supporters shows the list of organizations.

Manufacturing/Building Method

Unknown

Intellectural Property Type

Patent Protected

User Provision Model

Users can obtain the product from the manufacturer after providing the required project information

Distributions to Date Status

Systems have been installed in multiple locations worldwide

Design Specifications

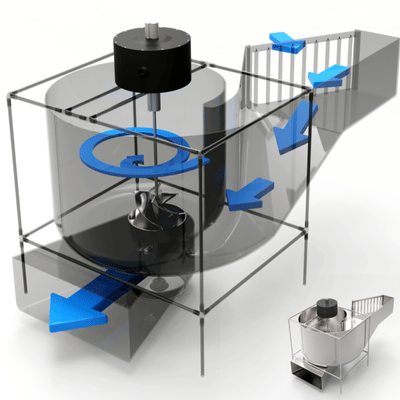

The turbine impeller is designed to operate with a low rpm, low shear stress, and has a slow rate of pressure difference over the blade ensuring it will not cause any negative impact on the marine life. The system is designed in a way that it will not sustain any damages if any flooding occurs in the river. During a flooding situation, the elements of the entire product will submerge up to 10 m below the water. The overall system can be monitored from any location at any given time as it is integrated with a remote monitoring software.  All the parts of the rotor and the casting of the turbine have been designed using Stainless Steel.

Technical Support

Contact Turbulent

Replacement Components

Unknown

Lifecycle

Turbines have a lifetime of 30 years provided the users follow the maintenance plan

Manufacturer Specified Performance Parameters

An eco-friendly, resilient and a low cost turbine that can be operated even with a low head.

Vetted Performance Status

A study conducted by the manufacturer determined that the turbines are fish-friendly. The CFD model has been validated using a real scenario project conducted in Chile. The manufacturers are currently carrying out further research with a university to further validate this through real fish experiments.

Safety

Be sure to follow proper electrical installation and control guidelines.

Complementary Technical Systems

- DC to AC Inverters - Electromagnetic Compatibility (EMC) Filters - Battery Storage - Diversion Loads

Academic Research and References

Compliance with regulations

 The system is in compliance with the ISO 9001:2015 standards.

Other Information

None
