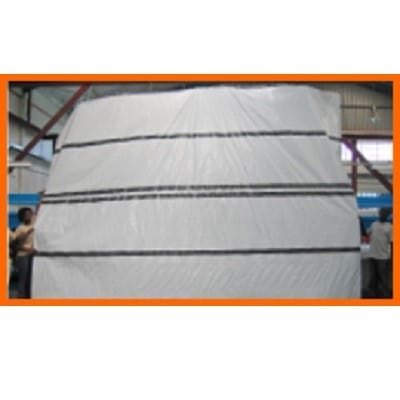

UN/IFRC Woven Flexible Tarpaulin

Target Users (Target Impact Group)

Distributors / Implementing Organizations

NRS Relief FZE

Manufacturing/Building Method

This product is mass-produced in Dubai by NRS Relief following the ICRC/IFRC/MSF/Oxfam Standards

Intellectural Property Type

Trade Secret

User Provision Model

Users can obtain a quote of the product from NRS Relief

Distributions to Date Status

The company produces and distributes Woven Flexible Tarpaulin since the decade of 1980, and there is not a registry of how many of this product have been distributed so far. However, the manufacturer estimated that around 100,000 were distributed in the last years ^{Interview with manufacturer}

Design Specifications

Woven tarpaulin design specs summary:

• ICRC/IFRC/MSF/Oxfam Standard
• High density polyethylene black fibers.
• Laminated on both sides with low density polyethylene coating
• Reinforced with 6 bands of 7.5 cm width with woven black HDPE fibers and coated outside
• Water, rot, and soil fauna resistant
• Temperature resistant from -20° to +80°C
• Flammability flash point over 200°C

Technical Support

There is no technical support provided and users are expected to maintain the product on their own.

Replacement Components

Unknown

Lifecycle

The Red Cross estimates a life span of 2 years minimum in the strongest tropical condition. The material can be used as second hand raw materials when they are no longer fit for a shelter. Many secondary usages have been observed, such as bags for recycled waste collection, car tarpaulins, raincoats, personal bags, etc.

Manufacturer Specified Performance Parameters

The product was designed to resist water, rot, soil fauna, high temperatures (-20° to +80°C), and fire (flammability flash point over 200°C)

Vetted Performance Status

Unknown

Safety

N/A

Complementary Technical Systems

The woven flexible tarpaulin system is intended to drape/stretch over an erected structure - one built by the associated relief organization or the user.

Academic Research and References

Compliance with regulations

The manufacturer's technical specifications report that the product complies with different standards for tensile strength, tear strength, UV resistance and fire risk.

Other Information

Suggested uses for woven tarpaulins by the IRFC.
